5PSP Series

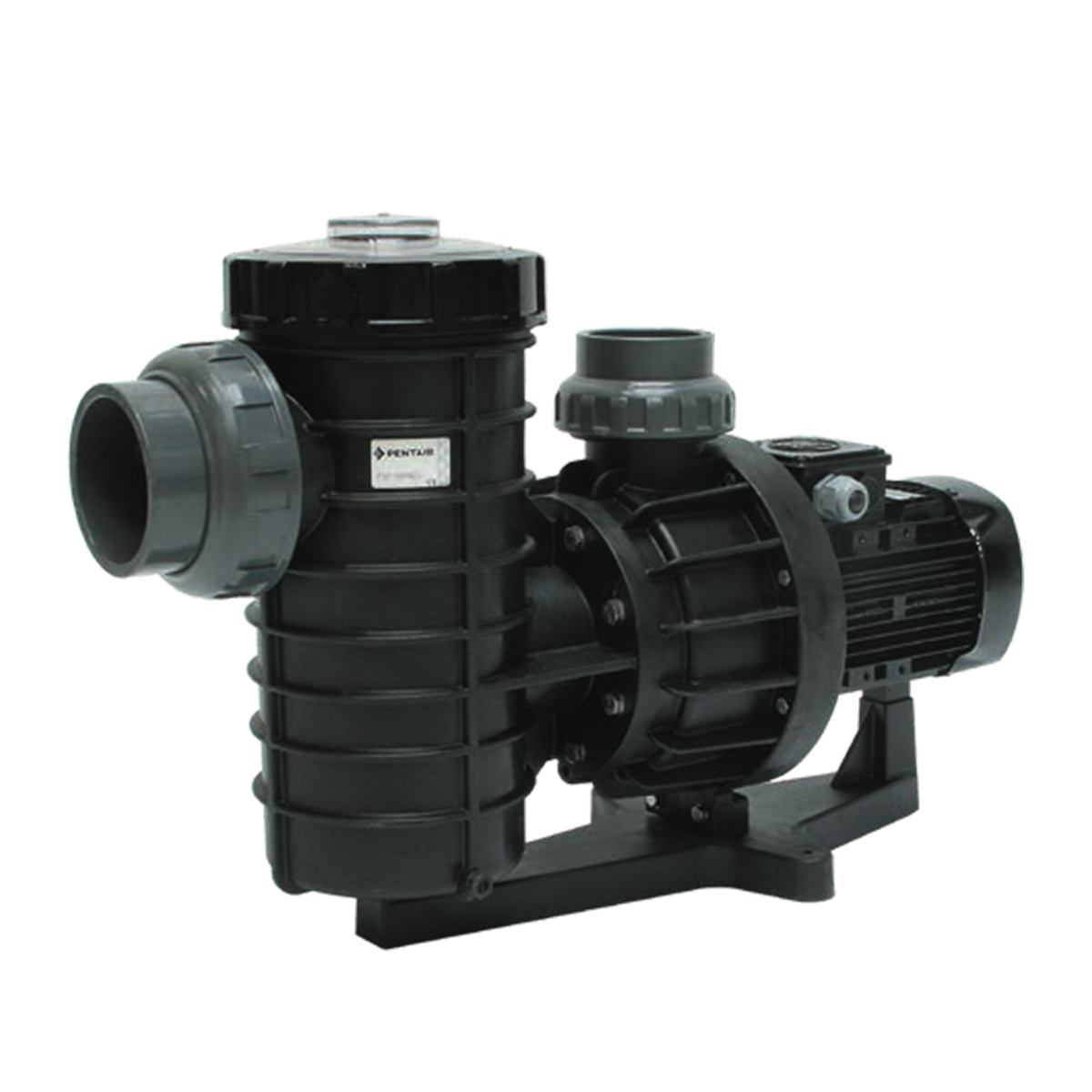

Commercial High Performance Pool Pumps

PENTAIR Thermoplastic Centrifugal Pumps are self priming, single stage, close-coupled (Pump with built-in electric motor, with the motor drive and pump impeller on the same shaft), monoblock centrifugal pumps with closed impeller and mechanical seals.
These pumps are suitable for non-aggressive, nonexplosive, clean or slightly contaminated liquids with low viscosity and specially designed for the pre-filtering and re-circulation of water in swimming pools, fish farming and other general purposes.

Features

• New improved design and additional 12.5Hp model
• Especially designed for swimming pool, aquatic and aquaculture applications
• Seawater approved up to 4% salt concentration
• Large pre-filter
• Injection molded components of high quality glass reinforced thermoplastic
• CE & TUV Approved, IP55 protected, IE2 compliant TEFC motor
• Corrosion resistant, high grade stainless steel motor shaft
• Metric and imperial connections available
• High chemical resistance with all metal internal components being stainless steel
• 4"/100mm suction, 3"/80mm discharge (4"/100mm discharge on 7.5, 10 and 12hp)
• 1 year commercial warranty.*
